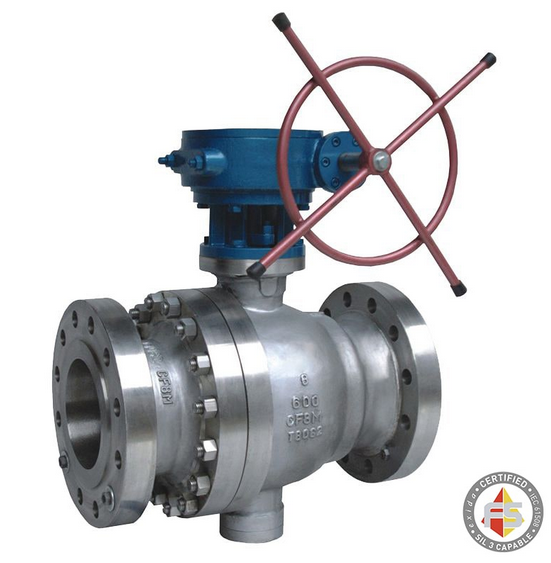

Soft-Seated Trunnion 2-Piece Flanged Ball valve

Specification

Construction : bolted body side entry, trunnion ball design
Flow bore : full port.
Rating : ANSI Class 150/ 300/ 600
Temperature : -20℉ ~ 400℉ (PTFE/ R.PTFE)
Materials : WCB, CF8, CF8M
Size range : 2”~24”.

Features

With ISO 5211 Mounting Pad, re-Drilled Metric Thread for easy automation.

‧Thrust washer prevents galling, reduces torque and provides secondary stem seal.
‧Long cycle life, Low uniform torques.
‧Designed to be fire-safe to minimize both external and internal fluid leakage after plant fires.
‧The double block and bleed feature, both with the ball in the fully closed or fully open position, is a standard feature.
‧Primary soft seat, Secondary metal-to-metal seat Fire-safe seat design.
‧With Independent Stem & Ball and Independent Floating Seats.
‧Self –Relief in the body Cavity.
‧Blow-Out Proof Stem & Antistatic Device design Provides Maximum Safety.
‧Emergency Sealant Injection on Stem & Seats is available.
‧Wide range of seat & seal materials is available.
‧DIN 50049-3.1 Certificate Available.

Safety/Quality Approvals

ISO 9001; PED 2014/68/EU; API 6D

File download

Literature
Series T2 Soft-Seated Trunnion 2-Piece Flanged Ball valve (PDF)
